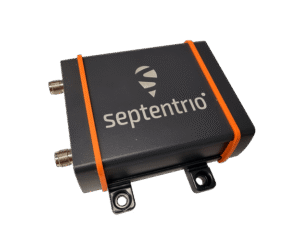

Ruggedized multi-frequency rover receiver

AsteRx EB is a multi-frequency GNSS receiver delivering centimeter-level RTK positioning in space-constrained industrial application thanks to its small dimension and light weight, combined with commonly used interfaces and industrial grade connectors.

The AsteRx EB is a rover GNSS receiver with best-in-class positioning performance, employing Septentrio’s latest multifrequency multi-constellation RTK technology. It delivers robust and reliable positions with low-latency also in challenging environments in both single or dual antenna modes. Its specialised design makes it an easy-to-use, cost-efficient rover receiver.

The GNSS+ Technologies – reliable positioning in challenging environments

Mechanical vibrations or shocks caused by rough terrain can wreak havoc with satellite tracking. LOCK+ automatically adjusts the parameters of the AsteRx SB GPS / GNSS receiver so you never lose position.

Activity in the ionosphere is a problem for GNSS signals, from loss of RTK fix to total loss of signal lock. Having honed our skills, supporting applications in the most iono-active areas on Earth, the result is IONO+: the most advanced protection against ionospheric disturbances to GNSS signals on any receiver.

Metal and large nearby structures can reflect GNSS signals and produce multipath. The Advanced Multipath Mitigation Technology APME+ effectively disentangles direct and reflected signals enhancing both position and measurement quality. APME+ is bias free and, in line with Septentrio’s commitment to maximum configurability, can be disabled.

Advanced Receiver Autonomous Integrity Monitoring (RAIM+) comprises fault detection mechanisms of the receiver at all the levels including the generation of measurements, quality control and navigation algorithms. Detected faulty measurements, which are typically caused by high multipath or active ionosphere, are removed from the solution.

AIM+ anti-jamming and RF spectrum monitoring system

AIM+ offers built-in protection against intentional and unintentional jamming using a sophisticated system of sampling and mitigation mechanisms. Your high-precision GNSS receiver can automatically suppress the widest variety of interferers from simple continuous narrow-band signals to the more complex wide band and pulsed transmitters as well as lnmarsat and Iridium satellite transmissions.

• All-in-view multi-constellation, multi-frequencey satellite tracking
• Light and compact IP67 weatherproof housing
• Sub-degree GNSS heading option
• GNSS+ algorithms guaranteeing reliable performance with low latency
• AIM+  advanced anti-jamming and anti-spoofing technology as part of the GNSS+ Algorithm Suite
• LOCK+ technology allowing robust satellite tracking under heavy vibrations and shocks
• Easy to operate with Web UI

Download the AsteRx EB Pro GNSS Receiver Datasheet»
