Product Information

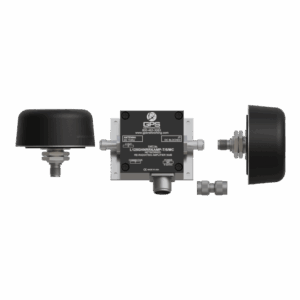

The  L1/L2GHNRRKIT GPS Repeater system  enables re-radiation of the GPS L1, L2, L5, Galileo, GLONASS and Omnistar signals indoors.

Ideal for aviation MRO hangars, GPS Networking’s L1/L2GHNRRKIT system consists of an active roof antenna,  a  re-radiating  amplifier  with  a  wall  mount  plug-in transformer  that  powers  the  entire  system,  together with a passive repeating antenna.  The GNSS signal from the roof antenna is amplified and radiated  indoors.

With this system in place, any devices inside a GNSS denied environment can receive signal up to 30m (100ft) away from the amplifier. Coverage of larger areas can be achieved with a bespoke setup including splitters and multiple further amplifiers (please contact us for more information). The system is ideal for aviation MRO hangars, manufacturing where GPS needs to be tested on the production line, FRS and any application where GPS or GNSS is required indoors.

Key Features

• Amplified high gain roof antenna (L1/L2/L5 Galileo/GLONASS and Omnistar)
  • Gain >40dB
• GPS repeating amplifier with power supply
  • Gain >20dB
• Optional mounting kit hardware
  • Roof antenna mount
  • Re-radiating amp mount
• Variable gain option available
  • Reradiating amp gain varies from 0 to +20 dB

Datasheets

Download the L1/L2/L5 GPS Repeater Datasheet»
