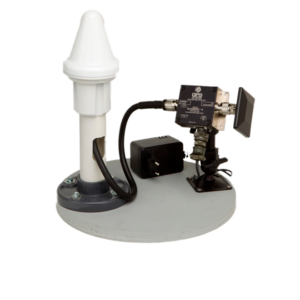

The GPS Hangar Networked Re-Radiating Kit (HNRRKIT) is a re-radiating kit that is designed for hangars or other large spaces without obstructions to restrict and attenuate the signal. The GPS L1 signal received by the included roof antenna is amplified and re-radiated to GPS receivers inside of a denied space using the passive re-radiating antenna. The HNRRKIT consists of an active roof antenna, a passive re-radiating antenna, and a re-radiating amplifier (HNRRKAMP) with an external power supply that powers the entire system. A cable from the roof antenna to the re-radiating kit is required and can be purchased separately.
In the standard Networked (Externally Powered) configuration, the re-radiating amplifier output (J1) is DC Blocked while the antenna port provides 5 VDC to power the roof antenna. Custom gain, DC power, and connector configurations are available upon request.

Key Features

• High Gain Amplified Roof Antenna

  • Provides 38 dB gain via internal LNA.
• Re-Radiating Amplifier with External Power Supply

  • 30 dB gain typical
• Optional Kit Mounting Hardware

  • Roof Antenna Mount & Re-Radiating Amplifier Mount available.
