Product Information

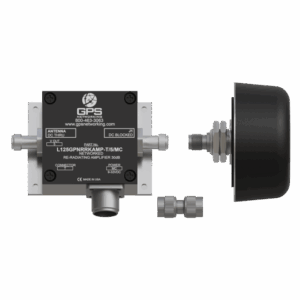

The L1/L2/L5 GNSS Portable Networked Re-Radiating Kit (L125GPNRRKIT) is a repeating kit that is designed for deployments where a full L-band antenna is already in place. The L-band signal received by the previously installed roof antenna is amplified and repeated to GPS receivers inside of a denied space using the passive repeating antenna. The L125GPNRRKIT consists of a passive repeating antenna, a coaxial RF adapter, and a repeating amplifier with an external power supply that powers the entire system. A cable from the roof antenna to the re-radiating kit is required and can be purchased separately.

In the standard Networked (Externally Powered) configuration, the repeating amplifier output (J1) is DC Blocked while the antenna port will receive the RF signal and pass the customer selected voltage (3.3 to 15 VDC). Custom gain, DC power, and connector configurations are available upon request.

Key Features

• Re-Radiating Amplifier with External Power Supply
  • 30 dB gain typical.
• Optional Kit Mounting Hardware
  • Re-Radiating Amplifier Mount available.
• Optional Variable Gain Amplifier
  • Adjustable gain from 1 dB to 26 dB.
• Optional Variable Gain Amplifier with LCD Screen
  • Adjustable gain from 0 dB to 30 dB.

Datasheets

Download the L125GPNRRKIT Repeater Datasheet»
