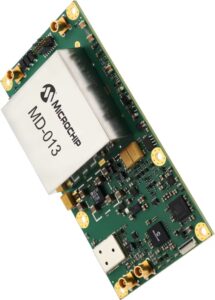

The MD-013 is a Microchip standard platform module that provides 1 pps TTL,10 MHz sine wave and 10 MHz square wave outputs that are disciplined to an embedded 72 channel GNSS Receiver (with upgrade options L1 L2 L5 for dual-band multi-GNSS receiver supporting GPS, GLONASS, Galileo, and BeiDou). In addition, an external reference input can override the internal receiver as the reference. Internal to the module is a Microchip digitally corrected OCXO.

• Embedded GNSS Receiver – GPS, GLONASS, Galileo
• L1 L2 L5 Receiver Options available
• 1pps TTL output signal
• 10MHz sinewave and square wave output
• Other RF output frequencies available
• Adaptive aging correction during holdover
• Barometric pressure correction
• Serial Communications Interface
• NMEA 0183 V4.1
• Evaluation kit with software available
