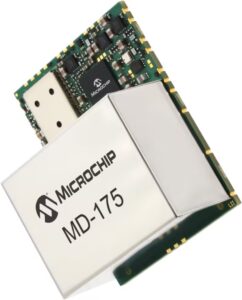

The MD-175 is a Microchip GNSS disciplined module. It is a fully integrated GNSS disciplined oscillator module in a compact surface mount 40 x 50 mm footprint. The module has an embedded 72 channel receiver that is GPS, GLONASS and Galileo compatible and provides a sinewave or CMOS 10 MHz, and HCMOS 1 pps output. An onboard precision OCXO provides stabilities in the unlocked mode enabling extremely low holdover. The module operates from -40°C to +85°C.

Four MD-175 Models Available:

• MD-1750-DAE-15E7-10M0000000
  • CMOS RF Output
  • Temp Range: -40°C to 85°C
  • Holdover: 1.5 µs for 24 hrs w/2°C temp change
  • Steady State Power: 2 Watts @ 25°C
  • Phase Noise: -125 dBc/Hz at 10 Hz & -145 dBc/Hz at 1 kHz
  • ADEV: 5.0 E-12 at 1 sec tau & 1.0 E-11 at 10 sec tau
• MD-1750-DEE-15E7-10M0000000
  • Sinewave RF Output
  • Temp Range: -40°C to 85°C
  • Holdover: 1.5 µs for 24 hrs w/2°C temp change
  • Steady State Power: 2 Watts @ 25°C
  • Phase Noise: -125 dBc/Hz at 10 Hz & -145 dBc/Hz at 1 kHz
  • ADEV: 5.0 E-12 at 1 sec tau & 1.0 E-11 at 10 sec tau
• MD-1750-DAE-40E7-10M0000000
  • CMOS RF Output
  • Temp Range: -40°C to 85°C
  • Holdover: 4.0 µs for 24 hrs w/2°C temp change
  • Steady State Power: 2 Watts @ 25°C
  • Phase Noise: -125 dBc/Hz at 10 Hz & -145 dBc/Hz at 1 kHzPhase Noise: -125 dBc/Hz at 10 Hz & -145 dBc/Hz at 1 kHz
  • ADEV: 5.0 E-12 at 1 sec tau & 1.0 E-11 at 10 sec tau
• MD-1750-DEE-40E7-10M0000000
  • Sinewave RF Output
  • Temp Range: -40°C to 85°C
  • Holdover: 4.0 µs for 24 hrs w/2°C temp change
  • Steady State Power: 2 Watts @ 25°C
  • Phase Noise: -125 dBc/Hz at 10 Hz & -145 dBc/Hz at 1 kHz
  • ADEV: 5.0 E-12 at 1 sec tau & 1.0 E-11 at 10 sec tau
