MD-300
Product Information
Key Features
Datasheets
Product Information

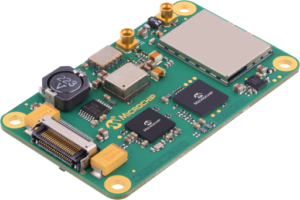

The MD-300 Series modules are compact, MEMS-based TCXO or OCXO GNSS Disciplined Oscillators with a 2.5″ x 1.5″ footprint for board or chassis mounting. The module features an embedded dual-band multi-GNSS receiver (GPS, Galileo, BeiDou, NavIC L5) and includes multiple outputs: 10 MHz sine wave (other frequencies available), differential RF, and 1PPS. Operating temperature: -40 °C to +85 °C.
Key Features
- Internal MEMS-Based OCXO or TCXO
- Embedded Dual-Band GNSS receiver
- Board-to-Board or -Cable Connector Options
- Serial communications interface
- 2 External Reference Inputs
- LVDS RF and 1PPS Outputs
- One 10 MHz Sine Wave Output into 50 ohms
- Other output frequencies available
- Ultra-Low G-Sensitivity
- Ultra-Low Thermal Transient Response
