Ideal for size-constrained applications

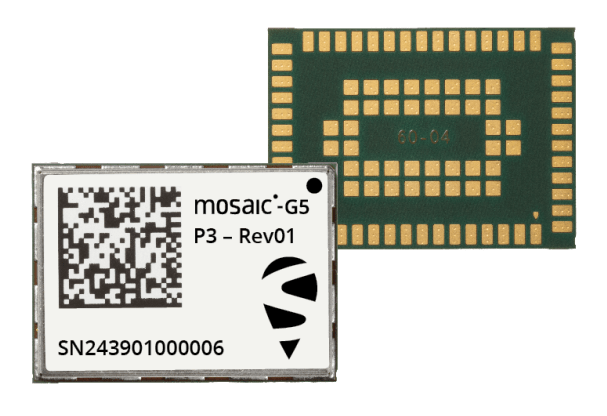

Septentrio mosaic-G5 P3™ is an advanced multi-frequency GNSS receiver module in a low-power surface mount package. It offers high-accuracy positioning, ideal for autonomous navigation. With GNSS+ technology for resilience and reliability, Septentrio is now offering a performance benchmark in mass market GNSS positioning.

This module has low and predictable latency needed for stable and accurate control systems. It is easy to integrate and is compatible with popular open-source autopilots. It is ideal for drones, robots, autonomous systems and space-constrained devices which require accurate positioning with a high degree of reliability.

Ultra-compact in size & weight

Sized at only 22.8 x 16.4 mm, and with a weight of only 2.2 g the mosaic-G5 P3™ has an outstanding size/power to performance ratio.

Ultra-low power design

The mosaic-G5 P3™ GNSS receiver module provides RTK positioning at a very low power consumption. It offers full raw data with positioning measurements and Galileo HAS positioning service compatibility1.

1 Future-proof feature which will be rolled out by regular software updates

Multi-frequency & multi-constellation GNSS receiver module

The mosaic-G5 P3™ is a quad-band receiver, which makes use of all-in-view GNSS constellations and their signals for optimal availability, even in challenging environments where the view of the sky may be partially obstructed. It is using all signals from constellations GPS/QZSS (red), BeiDou (orange), GALILEO (light blue) and GLONASS (dark blue), QZSS L6 CLAS signal will be added with software updates (purple).

• Small in size, advanced performance
• All-in-view satellite tracking: multi-constellation, quad-band GNSS module receiver
• Full raw data with positioning measurements and Galileo HAS positioning service compatibility1
• Best-in-class RTK cm-level positioning accuracy
• Industry-leading ultra-low power consumption
• Easy-to-integrate, optimized for automated assembly
• Advanced GNSS+ algorithms

Download the mosaic-G5 P3 Datasheet»
