The mosaic-go G5 P3 evaluation kit contains:

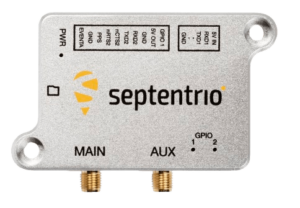

• 1 mosaic-G5 P3 GNSS/GPS module soldered on an interface board inside a metallic housing
• 1 USB cable
• 6-pin COM1 open-ended cable

The mosaic-go G5 P3 is Septentrio’s most compact high-precision GPS/GNSS evaluation kit, delivering best-in-class centimeter-level positioning performance especially in challenging environments. It is designed for easy evaluation of mosaic-G5 P3. This unique high-performance module supports all current GNSS satellite signals and is future-proof for upcoming signals and services.

Create a prototype by integrating the mosaic-go G5 P3 evaluation kit into your system using any of the of following connections: UART ports, USB 2.0, SD memory card.

Ultra-low power design

The mosaic-go G5 P3 provides RTK positioning at the lowest power consumption of any comparable device on the market.

GPS/GNSS receiver with direct connection to drone autopilots

Use the 6-pin JST-GH UART to connect directly to pupular open-source autopilots for efficient integration into UAVs.

• All-in-view quad-band, multi-constellation GNSS receiver: GPS, GLONASS, Galileo, BeiDou, QZSS
• Small evaluation kit: 74 x 44 x 11.4 mm, weight: 50 g
• Ready to use interface with USB-C, UART, PPS and SD card slot
• Industry leading ultra-low power consumption
• Easy evaluation of rover functionality
• Best-in-class RTK centimeter-level positioning
• Direct connection to popular open-source autopilots

Download the mosaic-go G5 P3 Evaluation Kit Datasheet
